※特点：
1、 结构性防风雨设计, 独有学习模式，自动匹配主流仪表协议；
2、ABS塑料外壳/铁壳；
3、静态显示无闪烁，摄像头可拍摄；
4、结构性防雨，不需要遮雨遮阳罩；
5、隐藏式挂钩，可选配立杆安装；
6、选配无线，直线距离1000米+；
7、标配超级按键，支持手动调屏参，可手机或计算机调整。
8、KHSX-3最佳观测距离20m内. KHSX-5最佳观测距离30m内.KHSX-6最佳观测距离40m内.KHSX-7最佳观测距离50m内.
※FEATURES:
1. It features a structurally weatherproof design and an exclusive learning mode, enabling automatic matching with protocols of mainstream instruments.
2. ABS plastic enclosure / metal enclosure
3. Static display with no flicker, suitable for capture by cameras.
4. Structurally rainproof, with no need for rain or sun shields.
5. Concealed hook, pole mounting available as an option.
6. Wireless function is optional, with a straight-line distance of over 1000 meters.
7. Equipped with super buttons as standard, it supports manual adjustment of screen parameters, which can be configured via mobile phone or computer.
8. Optimal viewing distance for KHSX-3: within 20 m.Optimal viewing distance for KHSX-5: within 30 m.Optimal viewing distance for KHSX-6: within 40 m.Optimal viewing distance for KHSX-7: within 50 m.

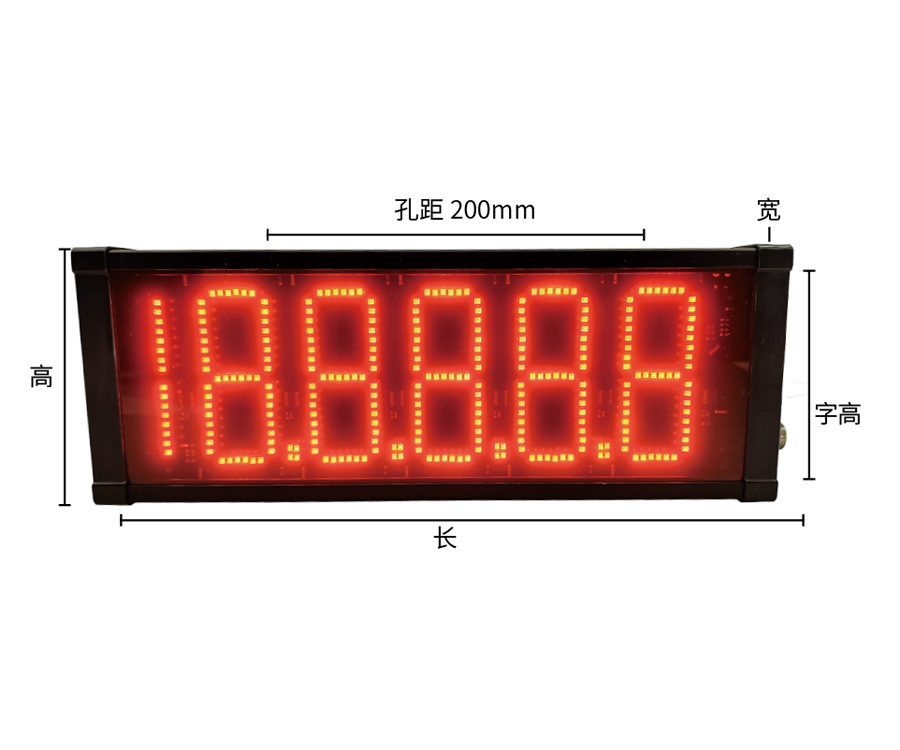

※数显屏3，5，6，7
图片规格：3寸数显屏，颜色红/绿
显示尺寸：6位7段，LED灯
可见性：最大75m(14寸），120°可视角度，最大光强1500mcd.
供电电源：220V
显示极限：999999
工作温度：-20°~60°
通讯：电流环；RS232；无线通讯，RS485（选配）。
信号线：10m
保修：3年
※Digital Display Screens 3, 5, 6, 7
Specification of Display Screen: 3-inch digital display screen, color: red/green
Display Size: 6-digit 7-segment, LED lights
Visibility: Maximum 75m (for 14-inch model), 120° viewing angle, maximum luminous intensity of 1500mcd
Power Supply: 220V
Display Limit: 999999
Operating Temperature: -20°C ~ 60°C
Communication: Current loop; RS232; wireless communication, RS485 (optional)
Signal Wire: 10m
Warranty: 3 years

产品技术特性表
