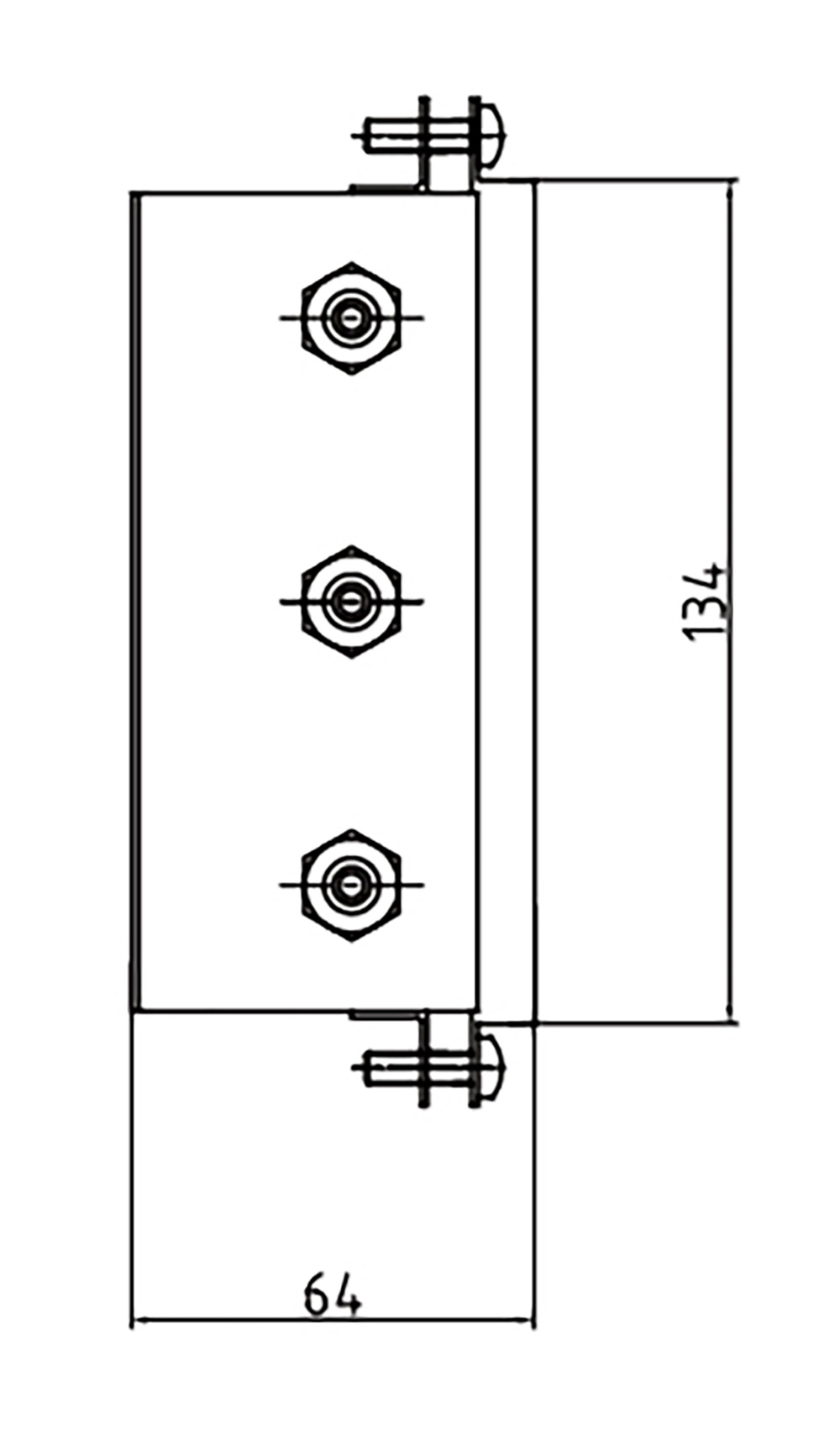

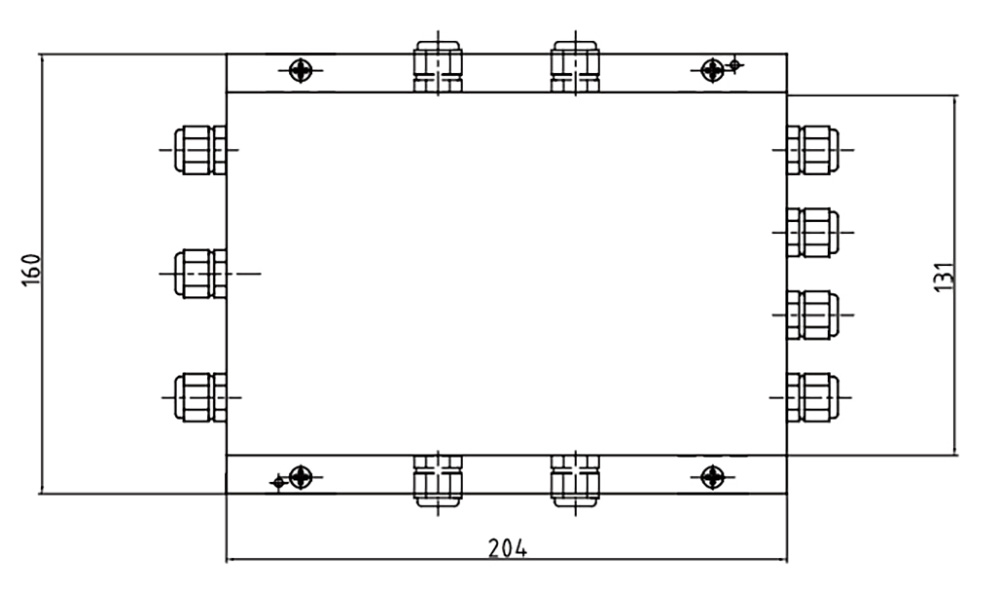

产品尺寸图

※特点：

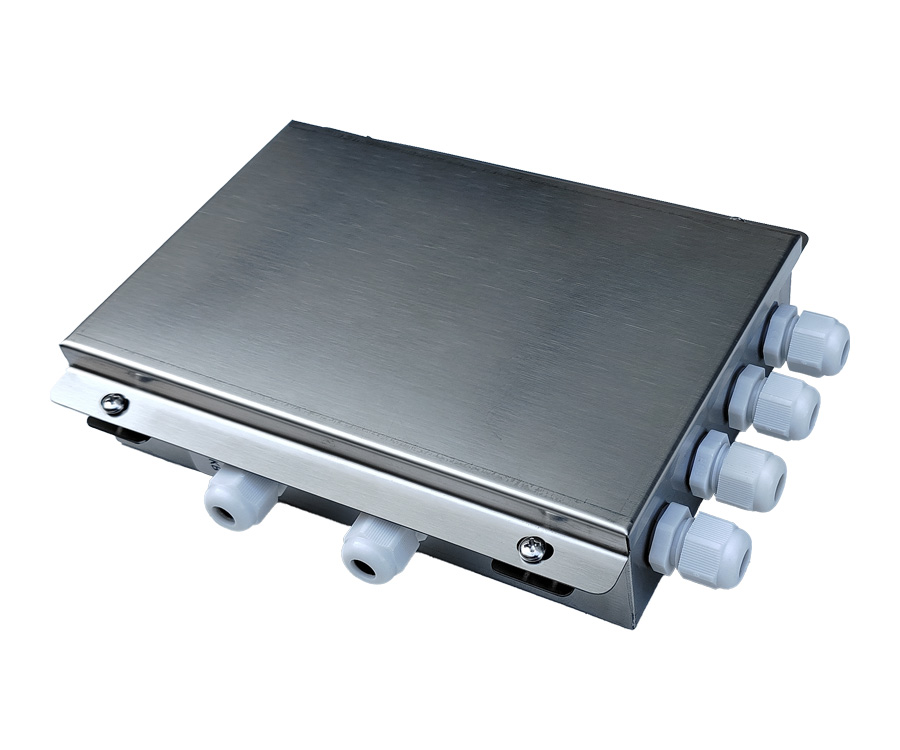

1、 BSB-8D采用军工级精密电阻,高精度、低温漂,数字信号； 外壳为304不锈钢，更强的EMC防护性能，抗干扰能力强; 盒内有10个四线制带屏蔽线的传感器接入端，一个六线制的输出端。输出端的信号为所有接入传感器的集成信号输出。
2、采用专用密封接头。
3、盖板有防水橡胶垫圈，防水，防尘，适用于环境条件恶劣的工业 环境。
4、用于各种工业称重应用，包括地磅、料罐秤、料仓及传送带秤等设备，广泛应用于养殖、搅拌站、基建、化工等行业。
※FEATURES:
1. BSB-8D Technical Specifications (English Version) The BSB-8D adopts military-grade precision resistors, featuring high accuracy, low temperature drift, and digital signals.Its housing is made of 304 stainless steel, providing enhanced EMC (Electromagnetic Compatibility) protection and strong anti-interference capability.Inside the box, there are 10 four-wire sensor input terminals with shielded wires and one six-wire output terminal. The signal from the output terminal is the integrated signal of all connected sensors.
2. Equipped with dedicated sealed connectors.
3. The cover plate is fitted with a waterproof rubber gasket, offering water and dust resistance, and is suitable for harsh industrial environments.
4. It is used in various industrial weighing applications, including equipment such as truck scales, tank scales, silo scales, and conveyor scales. It is also widely applied in industries like breeding, mixing stations, infrastructure, and chemical engineering.
※使用说明：

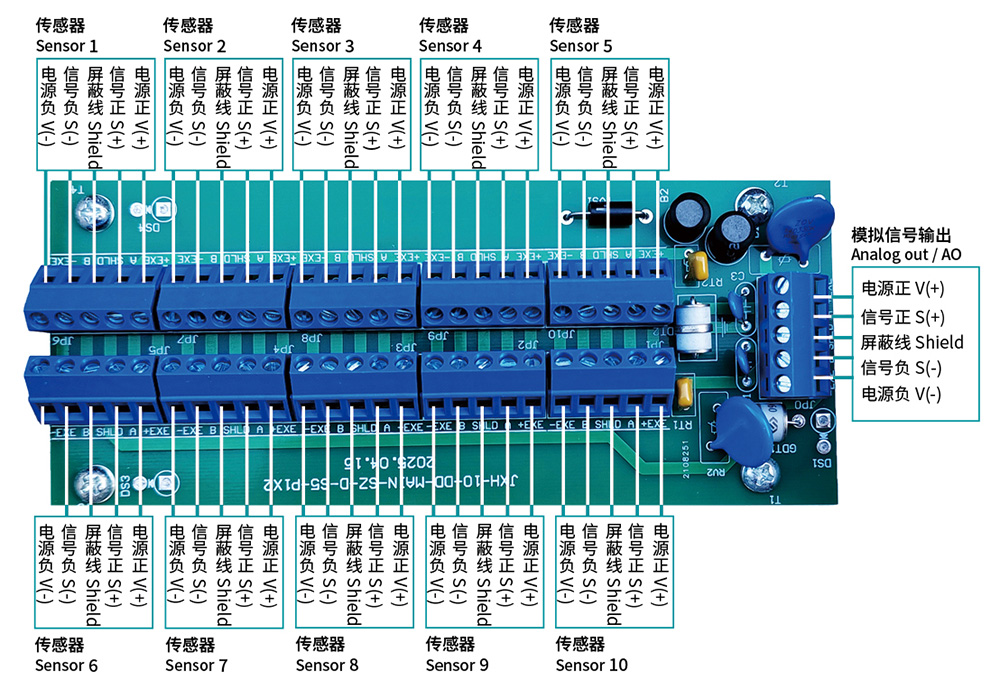

本接线盒适用于数字传感器的连接；各接线端子标示如下:
EXE+: 12V+，传感器电源正端
A:传感器信号A端
EXE-:12V-,传感器电源负端
SHLD:屏蔽电缆的屏蔽层
B:传感器信号B端
(使用六线制传感器时，需将电源正与感应正短接至EX+;电源负与感应负短接至EX-。)
※User Manual
This junction box is suitable for connecting digital sensors: The markings of each terminal are as follows:
EXE+: 12V+, Positive terminal of the sensor power supply
A: Signal terminal A of the sensor
EXE-: 12V-, Negative terminal of the sensor power supply
SHLD: Shielding layer of the shielded cable
B: Signal terminal B of the sensor
(When using a 6-wire sensor, short-circuit the positive power supply terminal and the positive sensing terminal, then connect them to EXE+; short-circuit the negative power supply terminal and the negative sensing terminal, then connect them to EXE-.)

产品技术特性表
