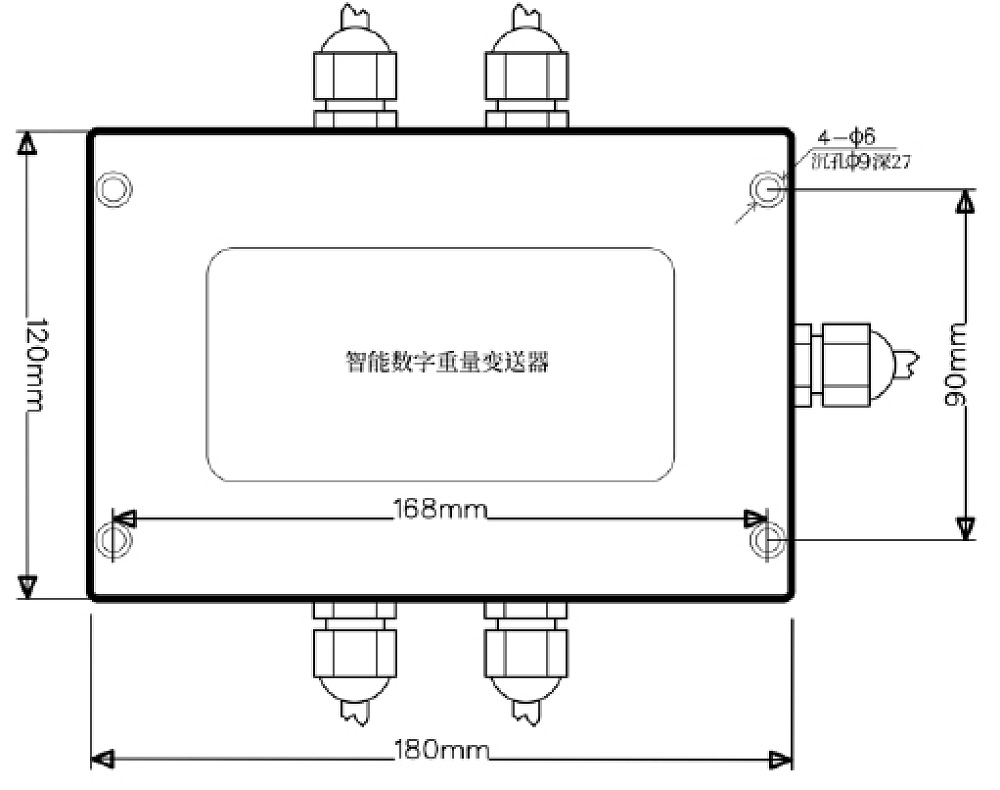

产品尺寸图

PRODUCT INTRODUCTION
※特点：
采用高速的24位 $Sigma -Delta$ A/D转换器，信号高速采样、高分辨率、精心设计动态滤波程序，数据高速稳定可靠。
支持重量标定、滤波强度设置、地址修改、通讯稳定不中断不掉数据，抗电磁干扰能力强，适用工业现场的应用。
通讯接口可选择：RS485接口或RS232接口。
MODBUS-RTU通讯方式。
宽电压工作范围：DC9～28V。
通讯地址支持拨码开关设置或上位机设置。
通讯波特率支持拨码开关设置或上位机设置，波特率设置范2400～115200。
支持上位机通讯初始化。
通讯支持广播指令。
※FEATURES:
Adopts a high-speed 24-bit $Sigma -Delta$ A/D converter, enabling high-speed signal sampling and high resolution; a well-designed dynamic filtering program ensures high-speed, stable and reliable data.
Supports weight calibration, filtering intensity setting, and address modification; features stable communication without interruption or data loss, along with strong anti-electromagnetic interference capability, making it suitable for industrial on-site applications.
Selectable communication interfaces: RS485 interface or RS232 interface.
MODBUS-RTU communication protocol.
Wide voltage operating range: DC 9~28V.
Communication address can be set via DIP switch or upper computer.
Communication baud rate can be set via DIP switch or upper computer, with a setting range of 2400~115200 bps.
Supports communication initialization via upper computer.
Communication supports broadcast commands.

产品技术特性表
